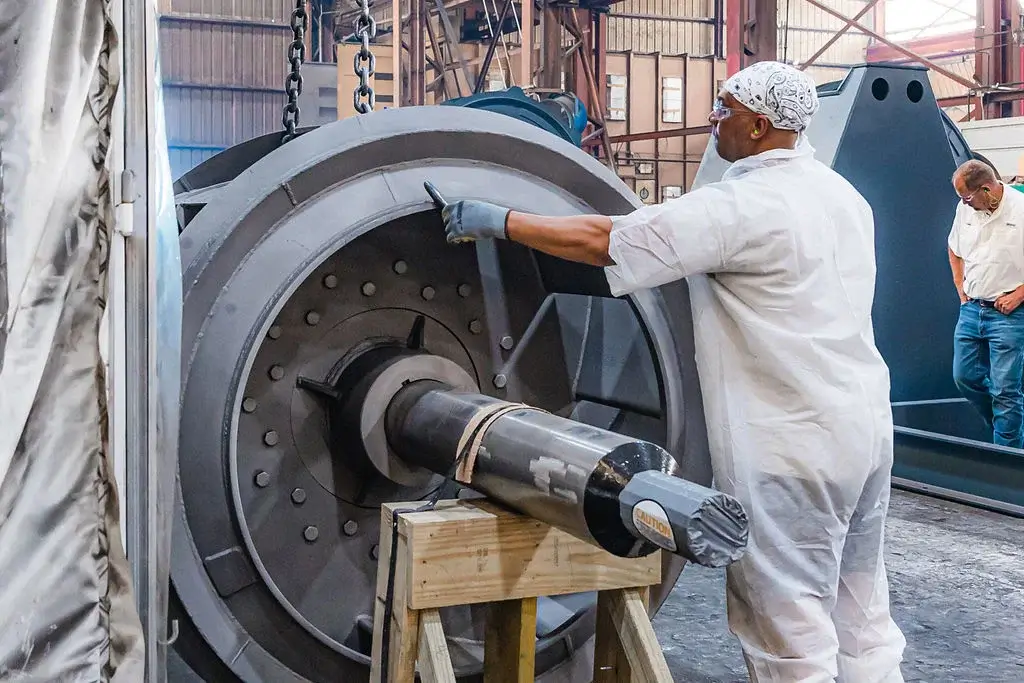

Managing industrial equipment requires a high level of expertise and knowledge. The industrial kiln is one such piece of equipment, and its optimal performance largely depends on one crucial component: the induced draft (ID) kiln fan.
Optimizing your kiln ID fan performance is a must to ensure kiln reliability and reduce energy consumption. This blog post will guide you through the steps to do just that.
Understanding Kiln ID Fans
A kiln ID fan directs heat across the raw meal. Its purpose is to transform the raw meal into a clinker. It consumes significant energy, so optimization is essential for the most effective operation while using the least energy.
To understand optimal performance for your application, we analyze performance conditions, including the inlet density, static pressure, and volumetric flow rate. This helps us determine the proper width-to-diameter ratio. A properly-engineered fan system will have the performance curve and the system resistance curve intersect at a point of peak efficiency, which lands slightly to the right of the capacity peak curve.
Techniques to Optimize Your Industrial Kiln Fan
Kiln Fan Service and Maintenance
Regular inspections and maintenance of the kiln ID fan are crucial. A maintenance program should include cleaning, lubrication, and checks for wear and tear. Regularly inspect and service bearings, seals, shafts, and impellers to minimize vibration and noise, enhancing efficiency and ensuring longevity.
Proper fan sizing is pivotal in improving kiln performance as it helps balance the volumetric flow and pressure rates. In cases where the fan’s size doesn’t match the system’s requirements, the solution could be replacing the fan entirely or adjusting the fan speed.
Replacing a fan is a significant project, but many of our clients have achieved a return on their investment in less than 24 months based on energy savings alone.
Kiln Fan Speed Adjustment
Adjusting the fan speed can significantly help in optimizing its performance. Installing a variable frequency drive (VFD) is a technique for controlling the fan’s speed to match the system’s specific flow and pressure requirements. Also, look at your dampers to confirm they are providing optimal airflow. These system components can significantly help in conserving energy and reducing operational costs.
Fan Efficiency Enhancements
Upgrading your existing fans with better designs, coatings, and materials can improve fan efficiency. Reducing fan tip clearance and applying fan impeller surface treatments are some methods to enhance fan efficiency.
Ductwork design in an industrial kiln plays an instrumental role in the overall efficiency of the induced draft fan. Proper control of air leakage and maintaining maximum velocity in the duct system reduces energy consumption and boosts efficiency.
Optimization of the kiln ID fan is not a one-time task but an ongoing process. Regular maintenance, adjustments, efficiency enhancements, airflow monitoring, and infrared inspections are key strategies for enhancing fan performance and reducing energy consumption.
Maintaining optimal kiln operations requires strategic planning and deliberate actions, and it starts with optimizing the heart of the system, your fan. Embrace these practices, and you will experience improved productivity, lower energy costs, and prolonged equipment lifespan.
